Complete Guide to Solar Panels and Street Lights for Your Property
Solar panels are the foundation of every photovoltaic system, and choosing the right ones has a direct impact on performance, durability, and return on investment. Whether you are powering a home, a commercial building, or outdoor lighting, this guide covers everything you need to know, including the Felicity Solar panel range and their innovative street lighting products.
Understanding Solar Panel Types

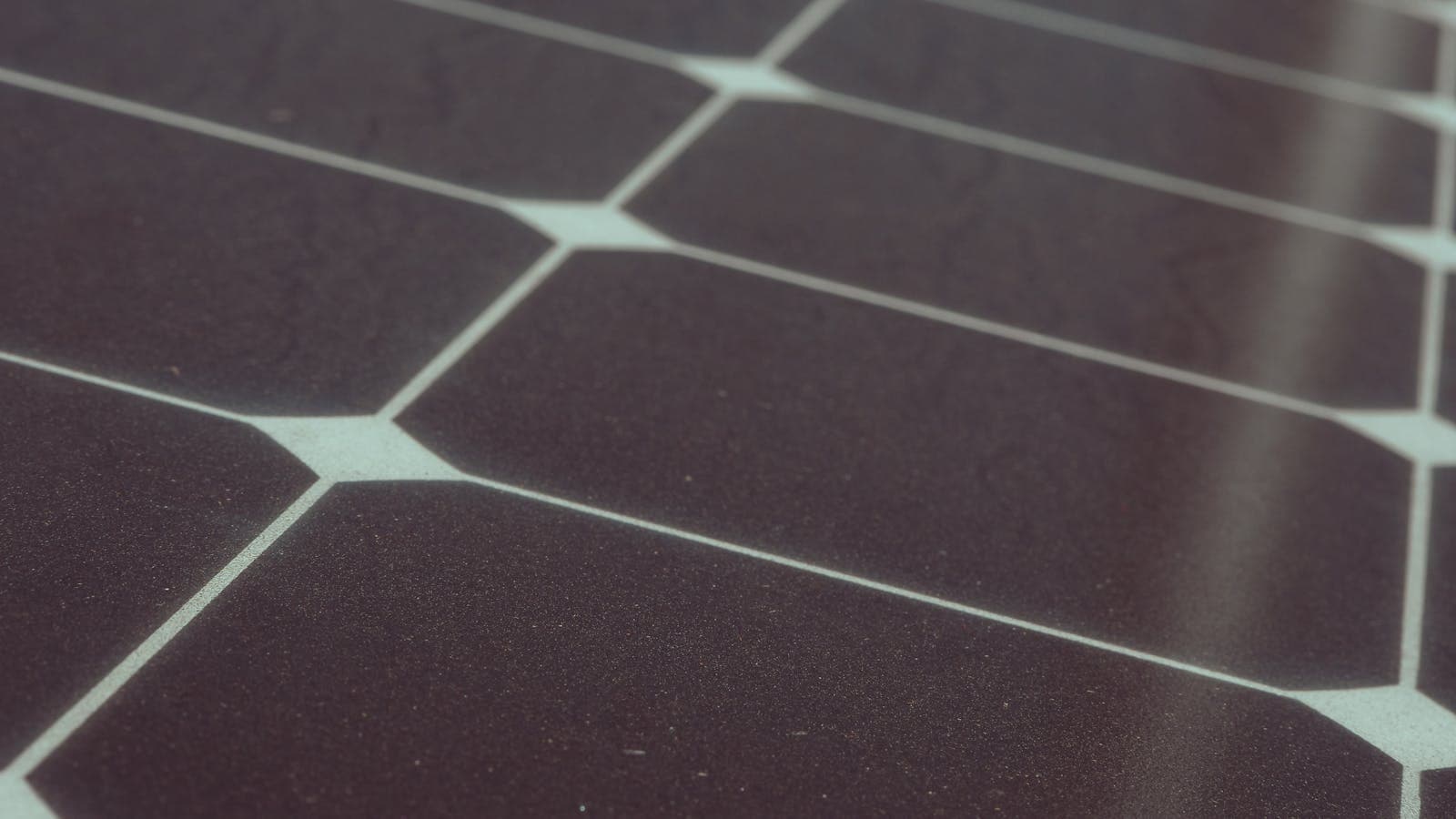

Monocrystalline Panels
Monocrystalline panels are made from single-crystal silicon cells, giving them the highest efficiency ratings (20-23%) and sleek, uniform appearance. They perform better in low-light conditions and have a longer lifespan. The Felicity F1 series uses premium monocrystalline cells for maximum energy output per square meter.
Polycrystalline Panels
Polycrystalline panels use multi-crystal silicon cells, offering slightly lower efficiency (17-20%) but at a more affordable price point. The Felicity P2 series delivers reliable polycrystalline performance for budget-conscious projects where roof space is not a constraint.
Half-Cut Cell Technology
The Felicity P3 series features half-cut cell technology, where each cell is laser-cut in half to reduce resistive losses and improve shade tolerance. When part of a panel is shaded, only the affected section loses output rather than the entire panel. This technology provides 2-3% higher real-world energy yield compared to conventional full-cell panels.
The Felicity Solar Panel Range
F1 Series: Premium Monocrystalline
The F1 series represents the top of the Felicity panel lineup. Key specifications include:
- Cell type: Grade A monocrystalline PERC
- Efficiency: Up to 21.5%
- Power range: 400W to 580W per panel
- Warranty: 12-year product warranty, 25-year linear performance warranty
- Frame: Anodized aluminum alloy, corrosion-resistant for harsh environments
- Certifications: IEC 61215, IEC 61730 compliant
The F1 series is ideal for residential rooftops, commercial installations, and ground-mounted solar farms where maximum power density matters.
P2 Series: Reliable Polycrystalline
The P2 series offers proven polycrystalline technology at competitive pricing:
- Cell type: Multi-crystalline silicon
- Efficiency: Up to 18.5%
- Power range: 270W to 340W per panel
- Best suited for: Budget projects, large ground arrays, and off-grid installations
P3 Series: Advanced Half-Cut
The P3 series combines monocrystalline cells with half-cut technology for superior real-world performance:
- Cell type: Half-cut monocrystalline
- Efficiency: Up to 21.0%
- Power range: 440W to 560W per panel
- Advantage: Better shade tolerance, lower hot-spot risk, higher energy yield in partial shading
Choosing the Right Panel for Your Needs
Consider these factors when selecting panels:
- Available space: Limited roof area favors higher-efficiency F1 or P3 panels. Ample ground space can accommodate more P2 panels at lower cost per watt.
- Budget: P2 series offers the lowest cost per watt. F1 and P3 offer the lowest cost per kWh generated over the system lifetime.
- Shading conditions: Properties with partial shading from trees or adjacent buildings benefit significantly from P3 half-cut technology.
- Climate: All Felicity panels are tested for high temperature, humidity, and salt mist resistance, making them suitable for Middle Eastern and African climates.

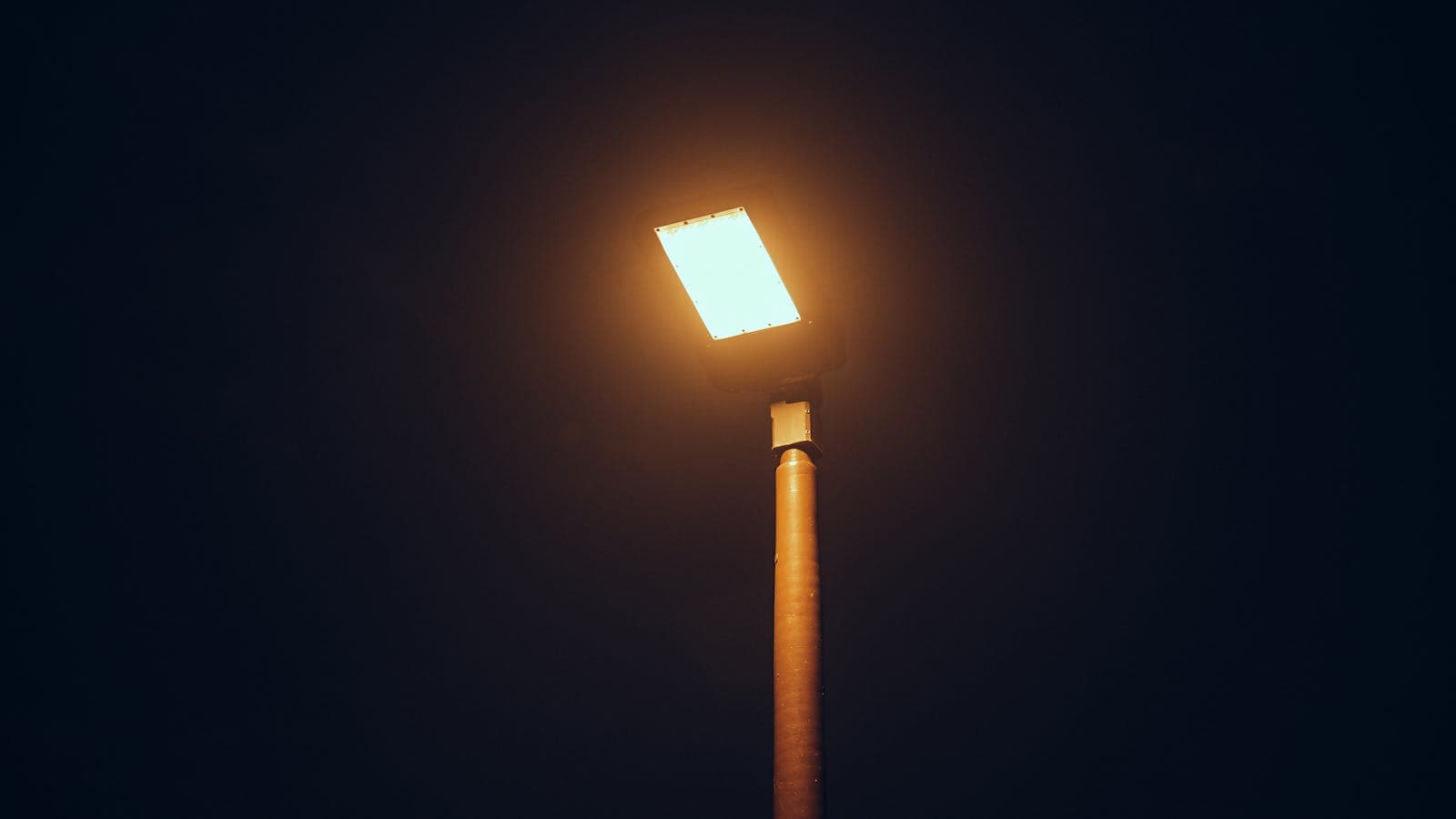

Solar Street Lights: Illuminating Outdoor Spaces
Felicity Solar also offers integrated solar street lights that combine solar panels, batteries, LED lights, and controllers into a single, self-contained unit. These are ideal for:
- Residential compound pathways and driveways
- Commercial parking lots and warehouse perimeters
- Rural roads and village streets without grid access
- Parks, gardens, and public spaces
- Construction sites and temporary installations
Key Features of Felicity Solar Street Lights
- All-in-one design: Solar panel, lithium battery, LED lamp, and smart controller integrated in a single unit.
- Automatic operation: Dusk-to-dawn sensing with optional motion detection for energy savings.
- High-efficiency LEDs: Up to 160 lumens per watt for bright, uniform illumination.
- Weather-resistant: IP65 or higher rating for rain, dust, and extreme temperature protection.
- Long battery life: Built-in lithium battery provides 3-5 nights of backup on a full charge for cloudy periods.
- Easy installation: No trenching or wiring required, just mount on a pole and it is ready.
Installation Best Practices for Solar Panels
Orientation and Tilt
In the Northern Hemisphere, panels should face south. The optimal tilt angle roughly equals your latitude. In the Middle East (latitude 20-30 degrees), a tilt of 20-25 degrees maximizes annual energy production. Some installations use adjustable mounts to optimize for summer or winter.
Spacing and Ventilation
Leave adequate gaps between panel rows to prevent shading from adjacent rows, especially during winter when the sun is lower. Good airflow behind panels keeps them cooler and improves efficiency, as panel output drops approximately 0.4% per degree Celsius above 25 degrees.
Wiring Configuration
Connect panels in series to increase voltage (reducing cable size and losses) or in parallel to maintain a lower voltage with higher current. Your inverter or charge controller specifications will dictate the optimal string configuration.
Maintenance Tips
Solar panels require minimal maintenance, but regular care maximizes output:
- Clean panels every 1-2 months in dusty environments (common in the Middle East and Africa).
- Use soft water and a gentle brush; avoid abrasive cleaners or high-pressure washers.
- Inspect mounting hardware annually for corrosion or loosening.
- Monitor output through your inverter or monitoring system to detect underperformance early.
Frequently Asked Questions
What is the difference between the Felicity F1, P2, and P3 solar panel series?
The Felicity F1 series uses premium monocrystalline PERC cells with up to 21.5% efficiency and power up to 580W, ideal for space-limited installations. The P2 series uses polycrystalline cells with up to 18.5% efficiency at a lower cost, best for budget projects. The P3 series features half-cut monocrystalline cells with up to 21% efficiency and superior shade tolerance, making it the best choice for partially shaded sites.
How do solar street lights work without being connected to the grid?
Solar street lights are self-contained systems with an integrated solar panel, lithium battery, LED lamp, and smart controller. During the day, the solar panel charges the battery. At dusk, a light sensor automatically turns on the LED lamp, which runs on stored battery power through the night. Many models also include motion sensors to dim the light when no movement is detected, extending battery life to cover 3-5 cloudy nights.
How often should I clean solar panels in a dusty climate?
In dusty environments like the Middle East and Africa, solar panels should be cleaned every 1-2 months to maintain optimal performance. Dust accumulation can reduce output by 15-25%. Use soft water with a gentle brush or cloth. Avoid abrasive materials or high-pressure washers that could damage the glass coating. Early morning cleaning is best when panels are cool.
